Special LED Ribbons
LED Sheet light CCT 2700--6000K

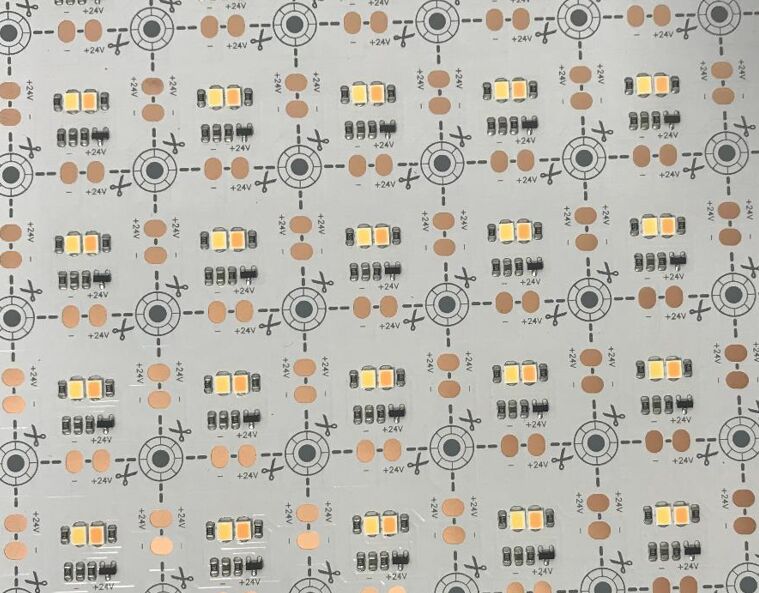

The Strip is made by flexible circuit board and 2835 LED Single Chip.
You could connect them easily at required quantity for your project. The led sheet has single color.
The led sheet is constant voltage design. Suitable for light box, bar, large area lighting, led panel lighting application.
* Adapt SMD 2835 as light source. CRI90.
* Keep every batches in one Bin, SDCM<3.
* 3M blue tape or red tape for easy installation.
* CE, RoHS, 3 years warranty.
* Can be cut by every 2 led, Any shape are available.
1,Product Features:
u Supply Voltage:24VDC
u Input Power: 11W(max)
u Operating Current: 451mA
u 280mm per piece,
u Width of Strip:280mm
u 196 leds per sheet
u 1LEDs per group /196 groups
u LED Life time: 36K hours at 55℃
u Storage temperature: -0℃ ~ +60℃
u Humidity: 40% ~ 70%
u Operating temperature:-20 ℃~ +60 ℃
u IP Rate: IP 20
u CRI>90
u Three Years Warranty
u Light Source: 2835 SMD LED
u Max. temperature at Tc point: 60℃
2,Product Information:
|
Lm/W |
Dimension |
Flux/piece |
LED qty/ piece. |
Color Temperature |
Voltage |
Operating Current |
Operating Power |
|
|
P28X28-11W-90B-CCT |
232 |
280*280mm |
1280lm |
392 |
4000K |
24V |
0.9A/pc |
21.6W |
3, Application:
u light box, bar, large area lighting
u led panel lighting application
u Backlighting for advertising, Blister words backlight, LED signs. Do your own energy-saving lighting projects etc.
