Special LED Ribbons
P480x240-15W-RGBW-5V

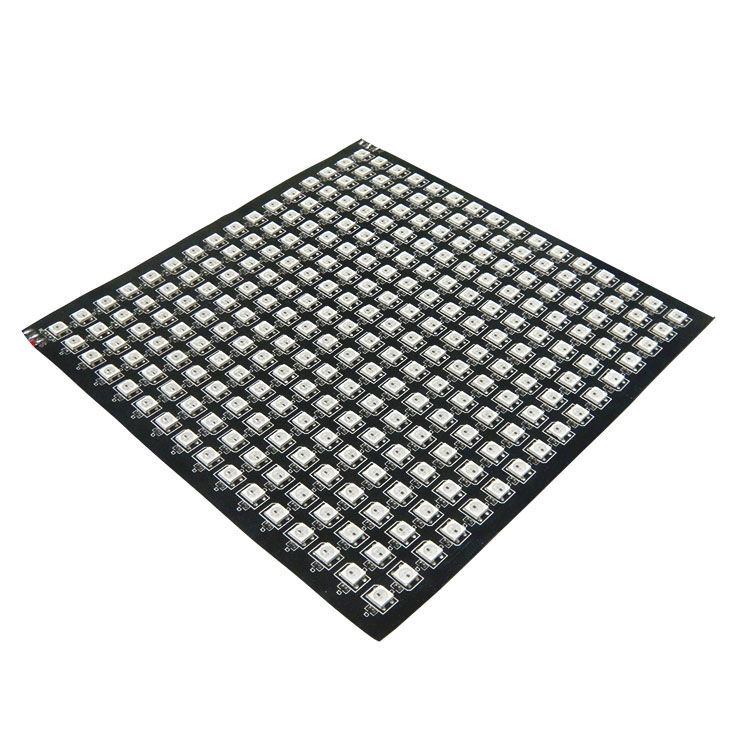

The Strip is made by flexible circuit board and 5050 LED Single Chip.
You could connect them easily at required quantity for your project. The led sheet has single color.
The led sheet is constant voltage design. Suitable for light box, bar, large area lighting, led panel lighting application.
* Adopt SMD 5050 as light source.
* SPI chips to an inside IC. WS2811 IC built-in 5050 RGBW LED chip
* 3M 300LSE adhesive blue tape or red tape for easy intallation.
* CE,RoHS, 3 years warranty.
* if make RGBW with SPI intergrated, the led sheet can't be cut because there is signal connected, the led connected with series not parallel.
1,Product Features:
u Supply Voltage:5VDC
u Input Power: 15W(max)
u Operating Current: 3A
u 480mm*240mm per piece,
u Width of Strip:240mm
u 128 leds per sheet
u 1LEDs per group /1 groups
u LED Life time: 36K hours at 55℃
u Storage temperature: -20℃ ~ +80℃
u Humidity: 40% ~ 70%
u Operating temperature:-20 ℃~ +50 ℃
u IP Rate: IP 20
u Three Years Warranty
u Light Source: 5050 SMD LED
u Max. temperature at Tc point: 80℃
2,Product Information:
|
Lm/W |
Luminous Flux/piece |
LED qty/ piece. |
Color Temperature |
Voltage |
Operating Current |
Operating Power |
Energy Efficiency Class |
|||
|
P480X240-15W-RGBW-5V |
R: 27Lm/W / G: 70Lm/W / B: 16Lm/W /
WW: 86Lm/W |
R: 332Lm G: 851Lm B: 194Lm / WW: 1188Lm |
128 |
RGB |
5V |
3A/pc |
15W/pcz |
G |
|
|
