1 ).P5050RGB+XW036HY12-W12 DC 12 V RGB+ 2700-6500 K Ra>80 4.2W（W）+ 4.2W(RGB)/M 0.7W（W）+0.7W(RGB)/Group 36 LED/M 3+3 PCS/Group 166.7mm W:12mm*T:0.25mm*5m 330 LM/M 18-20 LM 7W（W）+ 7W(RGB)/M 0.7W（W）+0.7W(RGB)/Group

2).P5050RGB+XW060HY12-W12 DC 12 V RGB+ 2700-6500 K Ra>80 60 LED/M 3+3 PCS/Group 100mm W:12mm*T:0.25mm*5m 560 LM/M 18-20 LM 4.8W（W）+ 14.4W(RGB)/M 0.24W（W）+0.72W(RGB)/Group

3 ).P5050RGBXW060HY12-W12 DC 12 V RGB+ 2700-6500 K Ra>80 60 LED/M 3 PCS/Group 50mm W:12mm*T:0.25mm*5m 380 LM/M 6-8 LM

 4).P5050RGBXW060HY24-W12 DC 24 V RGB+ 2700-6500 K Ra>80 4.8W（W）+ 14.4W(RGB)/M 0.48W（W）+1.44W(RGB)/Group 380 LM/M 6-8 LM 60 LED/M 6 PCS/Group 100mm W:12mm*T:0.25mm*5m 6.5W（W）+ 20W(RGB)/M 0.46W（W）+1.4W(RGB)/Group 520 LM/M 6-8 LM

 5 ).5050RGBXW084HY24-W12 DC 24 V RGB+ 2700-6500 K Ra>80 84 LED/M 6 PCS/Group 71.4mm W:12mm*T:0.25mm*5m 12W（W）+ 12W(RGB)/M 1.2W（W+W）+1.2W(RGB)/Group 480 LM/M 10-14 LM

6).5050RGB+WW060HY12-W12 DC 12 V RGB+ 2700/6500 K Ra>80 60 LED/M 6*3 PCS/Group 100mm W:12mm*T:0.25mm*5m

7). P5050RGB+3014WW060HY24 -W12 DC 24 V RGB+ 2700/6500 K Ra>80 6W（W）+ 7.2W(RGB)/M 0.6W（w+W）+0.72W(RGB)/Group 960 LM/M 10-14 LM 30 LED/M 3 PCS/Group 100mm W:12mm*T:0.25mm*5m

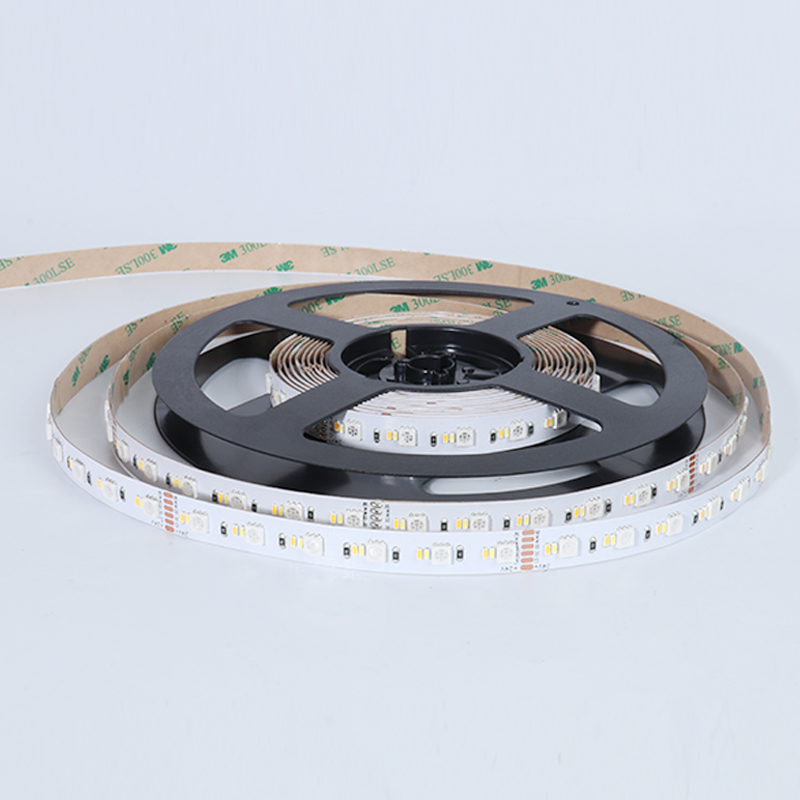

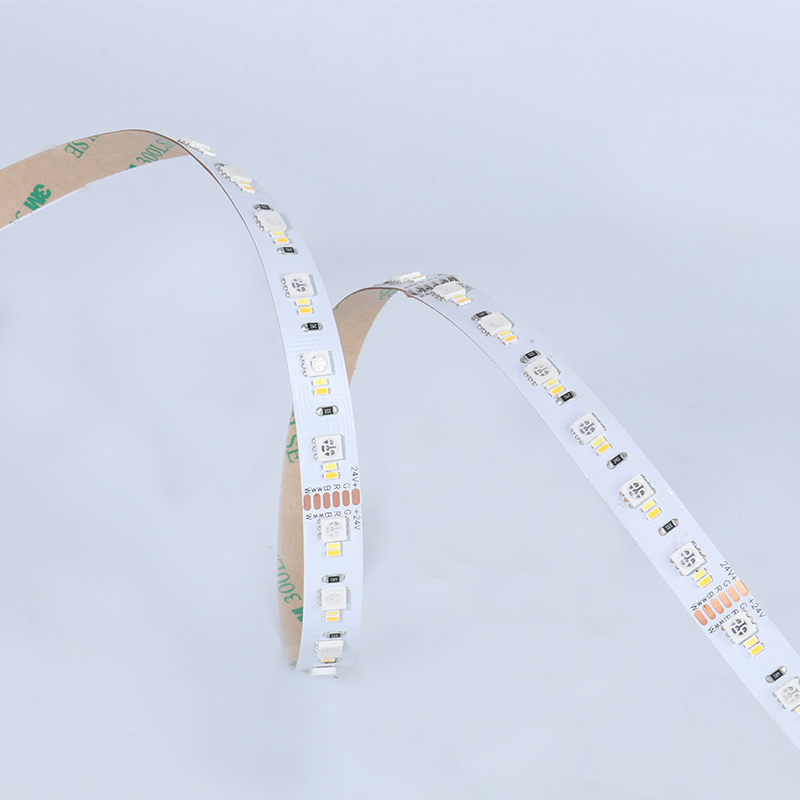

LED Type: 5050 + 3014 SMD

Color: RGB+white cct dimmable led strip,

LED Quantity: 30leds/Meter, 60leds/Meter, 120leds/Meter，180leds/Meter

View angle:120°

Working Input Voltage: 12V or 24V

Drive Mode: Contant Voltage

Dimension:

5000*8*2.5mm (non-waterproof),

5000*8*4mm (IP65 waterproof),

5000*10*4mm (IP67 waterproof).

5000*10*4mm (IP68 waterproof).

Waterproof Rate:

IP20: Non-waterproof with 3M sticker on the back,

IP65: waterproof is silicone gel or epoxy on the surfacewith 3M sticker on the back,

I67: silicone tube

I68: silicone glue inside the silicone tube
