LED strip SMD 2216 (HOT)
2216--120 LEDs/ M - 4 mm width of PCB
|
Product Size(mm) |
3000*4*0.25 |
|
LED Quantity(per meter) |
120 PCS |
|
LED Type |
SMD2216 LED |
|
Input Voltage |
24V DC |
|
Current(Amps/m) |
0.32 |
|
Min Cuttable Length(mm) |
50 |
|
Beam Angle |
120° |
|
Max. Power Consumption(W/meter) |
7.68W |
|
Operating Temperature |
-250 C ~ +450 C |
|
Storage Temperature |
-300 C ~ +800 C |
|
Net Weight(kg) |
0.2 |
|
Estimated Life |
50,000 hrs |
|
Certifications |
RoHs & CE& ETL |
Product Features:
u 5M per reel
u Width of Strip: 4 mm
u 600 LED per Reel
u 7 LED per small Unit
u Unit length: 50 mm
u Weight：90 g
u LED Life time: 50K hours
u Storage temperature:0 ℃~ +60 ℃
u Humidity: 40% ~ 70% R
u Operating temperature:-20 ℃~ +45 ℃
u IP Rate: IP 33
u CIR>90 CRI95-97 Available
u MAX Run length : 5 meter
u Three Year Warranty
u IES and Integrating sphere test report available
u Light Source: 2216 SMD LED
Product Information:
|
Part No. |
Color |
Luminous Flux/M |
LED qty/ Meter. |
Dominant Wavelength λd |
Operating Voltage |
Nominal Current (meter) |
Nominal Power (meter) |
View Angle |
||
|
P2216CW120A24-W04 |
Cool white |
500lm |
120 |
6000k-7000k |
DC24V |
0.32A |
7.68W |
120° |
||
|
P2216NW120A24-W04 |
Nature White |
550lm |
120 |
3900K-4100K |
DC24V |
0.32A |
7.68W |
120° |
||
|
P2216WW120A24-W04 |
Warm White |
620lm |
120 |
3000K-3200K/ 2650K-2750K |
DC24V |
0.32A |
7.68W |
120° |
||

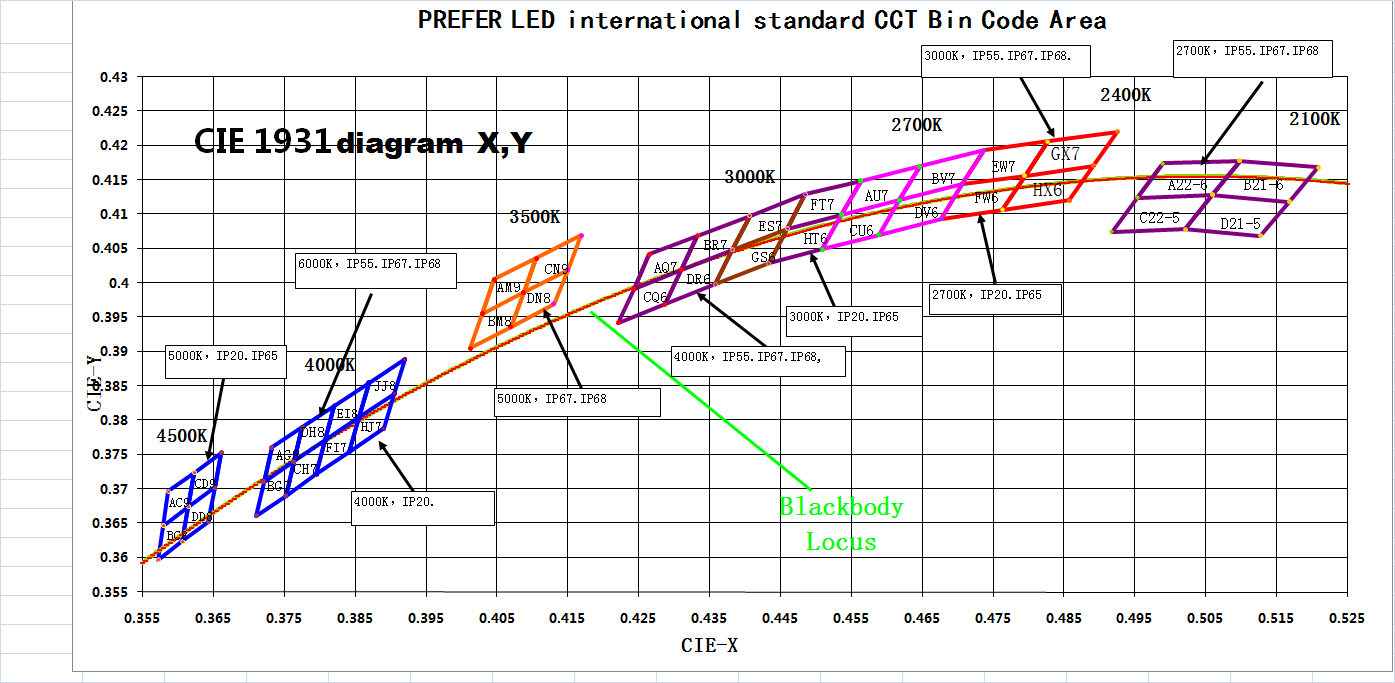

PREFER LED BIN standard： Narrow bin with Macadam 3 Step
2216 flexible LED strips have many features such as design of heat dissipation pad, high color rending index CRI 90-95 & CRI 95-97.
