u  5M per reel

      Different color temperature section can be modulated

u Width of Strip:  10 mm

u  600   LED per Reel

u  3 LED per small Unit

u  Unit length: 5 mm

u  Weight：87  g

u  LED Life time: 50K hours

u  Storage temperature:0 ℃~ +60 ℃

u  Humidity: 40% ~ 70% R

u  Operating temperature:-20 ℃~ +45 ℃

u  IP Rate: IP 33

u  CIR>90    CRI95-97 Available

u  MAX Run length : 8 meter

u  Three Year Warranty

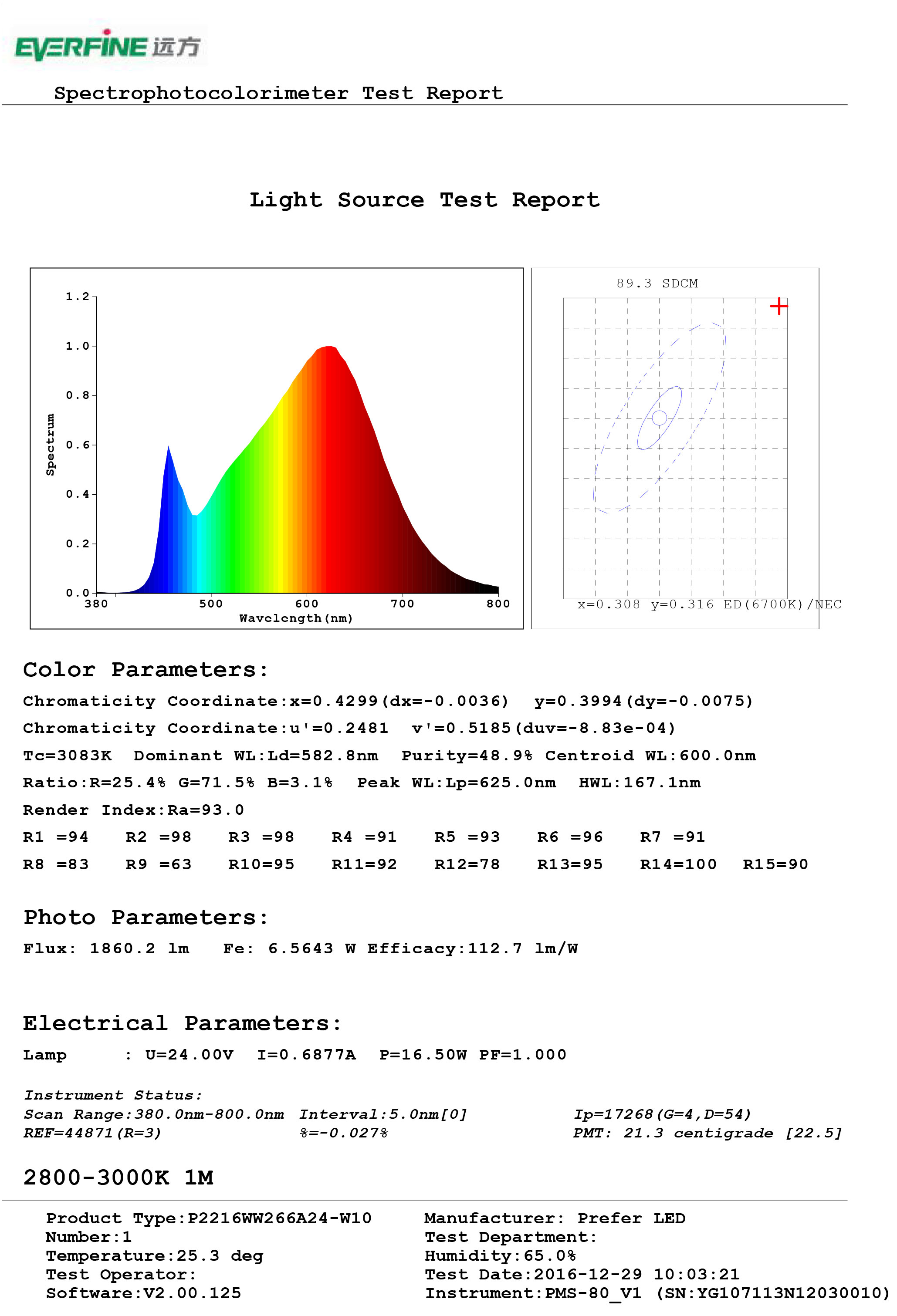

u  IES and Integrating sphere test report available

u  Light Source: 2216 SMD LED

Optical Parameters:

1.     Tolerance of measurement of luminous intensity is ±10%

2.     The dominant wavelength  λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

3.     Specifications are subject to change without notice.

4.     θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

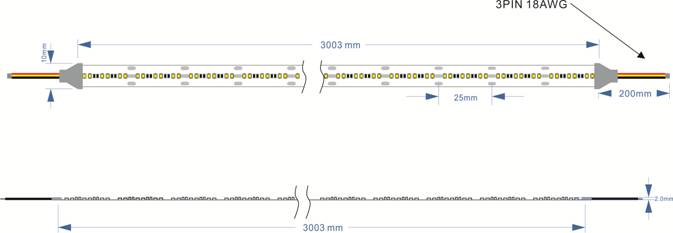

Dimension Drawing

PREFER LED BIN standard： Narrow bin with Macadam 3 Step

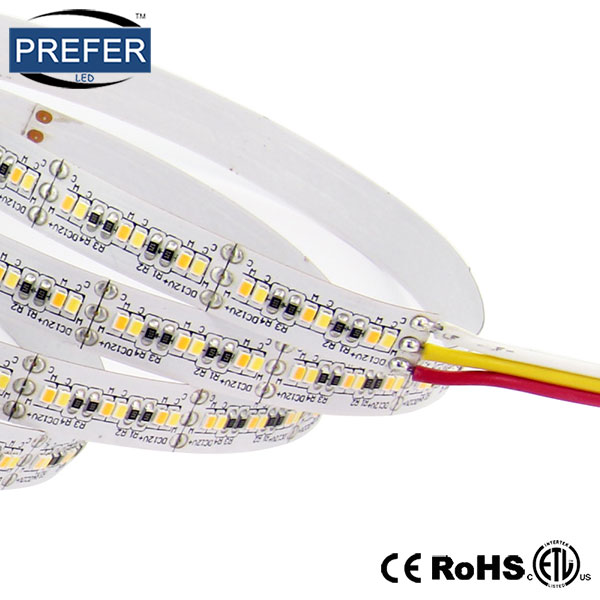

2216 flexible LED strips have many features such as design of heat dissipation pad, high color rending index CRI 90-95 & CRI 95-97.
