LED strip SMD 2216 (HOT)

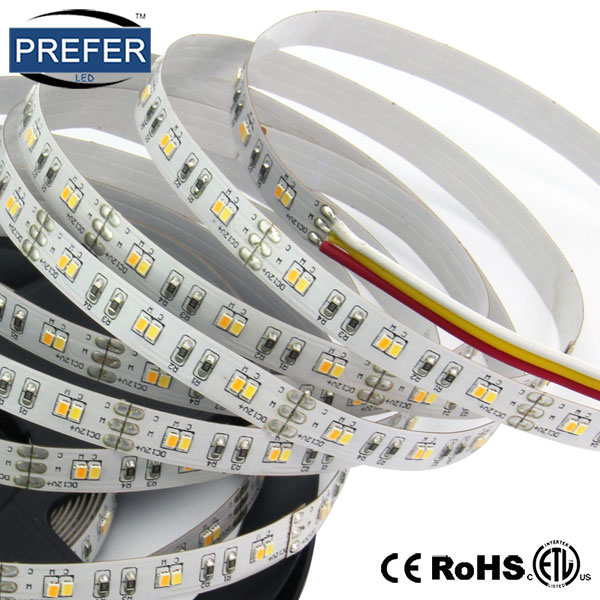

CCT2300K-6500K-SMD2216--120LED /M

Product Size(mm)	500082
LED Quantity(per meter)	120 PCS
LED Type	2216 SMD LED
Input Voltage	12V DC
Current(Amps/m)	0.83
Min Cuttable Length(mm)	50
Beam Angle	120°
Max. Power Consumption(W/meter)	10 W
Operating Temperature	-25⁰C ~ +45⁰C
Storage Temperature	-30⁰C ~ +80⁰C
Net Weight(kg)	0.05
Estimated Life	50,000 hrs
Certifications	RoHs & CE& ETL
IP rate	IP20

分享按钮

Product Description

u 5M per reel

u Different color temperature section can be modulated

2300K--6500k

u Width of Strip: 8mm

u 600 LED per Reel

u 3 LED per small Unit

u Unit length: 5 mm

u Weight：87 g

u LED Life time: 50K hours

u Storage temperature:0 ℃~ +60 ℃

u Humidity: 40% ~ 70% R

u Operating temperature:-20 ℃~ +45 ℃

u IP Rate: IP 33

u CIR>90 CRI95-97 Available

u MAX Run length : 8 meter

u Three Year Warranty

u IES and Integrating sphere test report available

u Light Source: 2216 SMD LED

Optical Parameters:

Item No.	Color temperature	match	Lumen/M	Mixed color temperature (on)	Ra
P2216CCT120A12-W08	2300+6000K	2300K	286	3800K	>90
		6000k	375
		2300+6000K	650
	2700+6000K	2700K	330	4100K
		6000k	375
		2700+6000K	680
	3000+6000K	3000K	335	4300K
		6000k	375
		3000+6000K	720

1.     Tolerance of measurement of luminous intensity is ±10%

2.     The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

3.     Specifications are subject to change without notice.

4.     θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

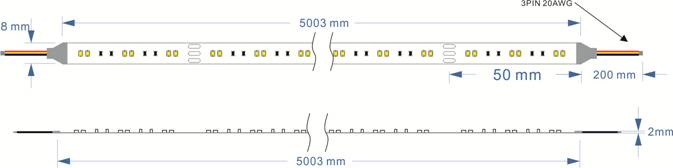

Dimension Drawing

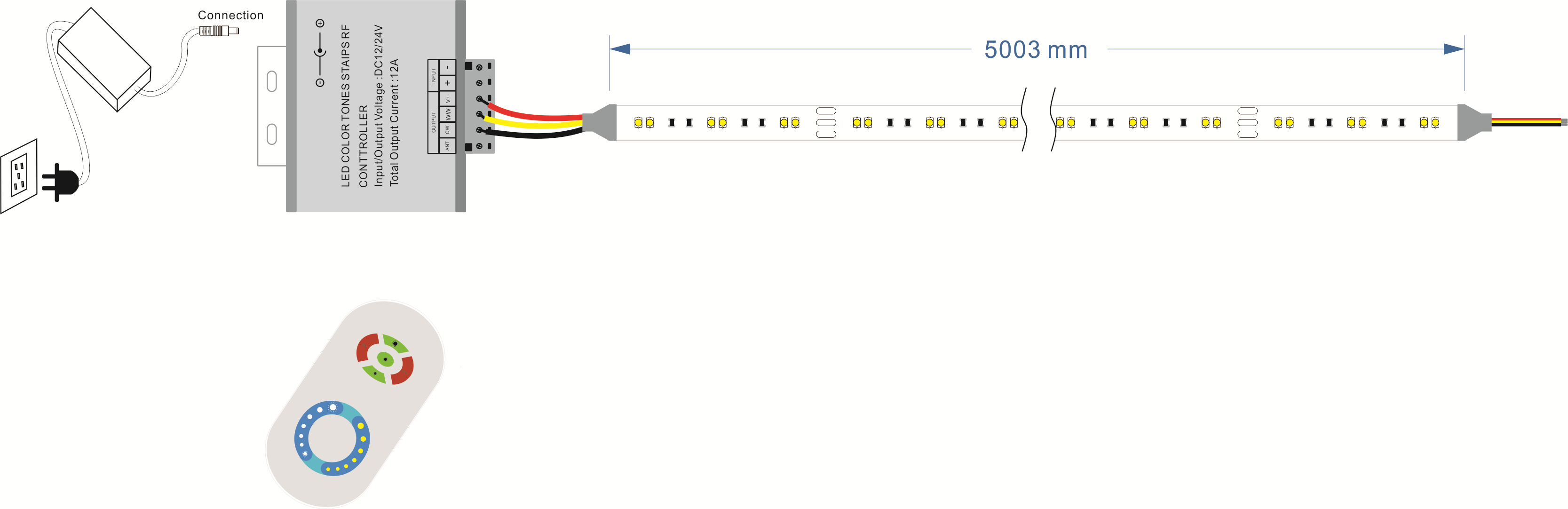

single use figure.

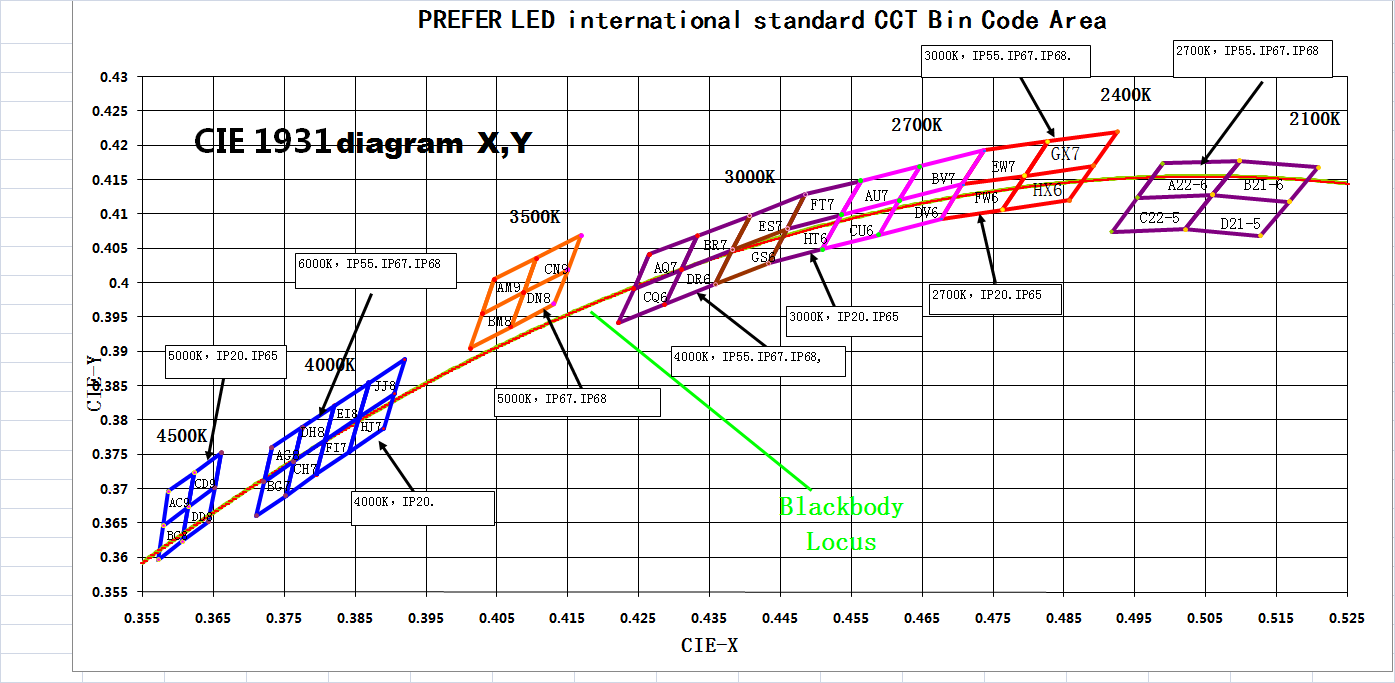

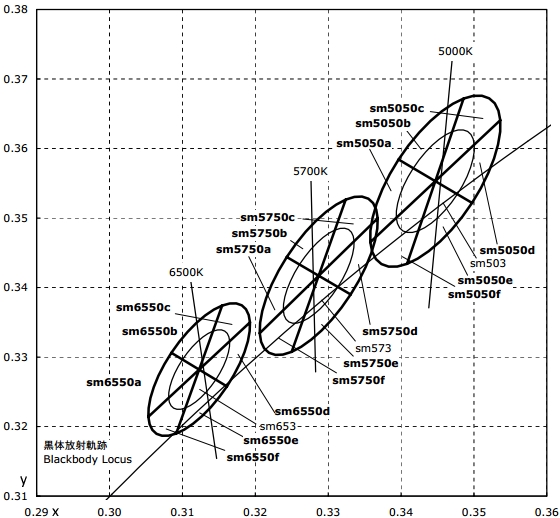

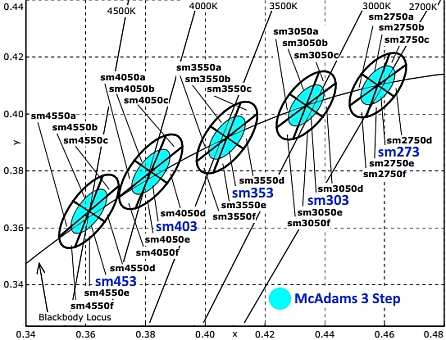

PREFER LED BIN standard： Narrow bin with Macadam 3 Step
