LED strip SMD 2216 (HOT)

SMD2216--240LED /M

SMD2216--266LED /M

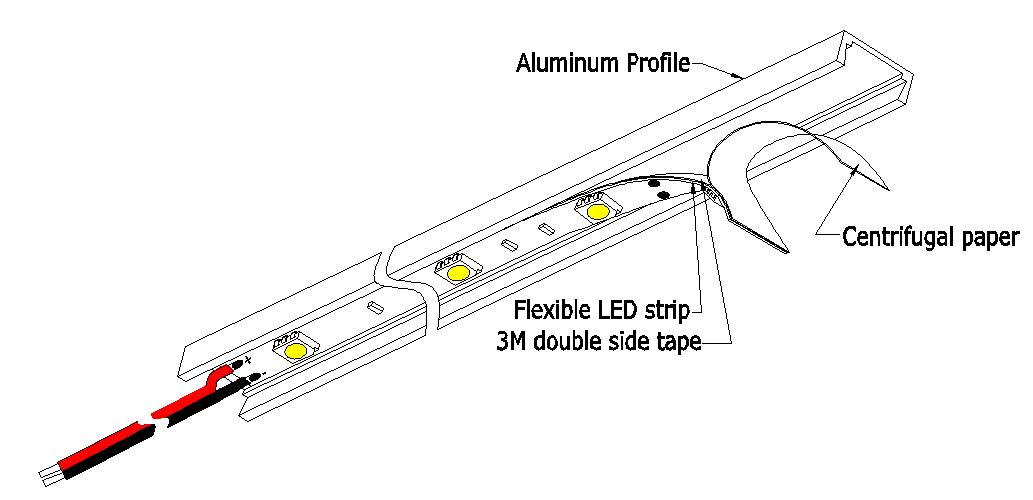

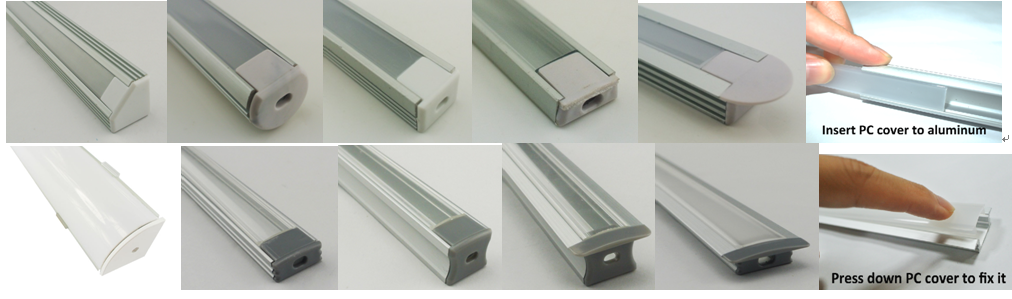

1) 2216 Spotless design, with CRI>90. (Easy company with mini aluminum profile.)

2) solved the problem dark space in the aluminum profiles

Electrical Parameter:

Product Size(mm)	5000100.25
LED Quantity(per meter)	240 PCS
LED Type	SMD2216 LED
Input Voltage	12V DC
Current(Amps/m)	1.28
Min Cuttable Length(mm)	12.5
Beam Angle	120°
Max. Power Consumption(W/meter)	15.36W
Operating Temperature	-25⁰C ~ +45⁰C
Storage Temperature	-30⁰C ~ +80⁰C
Net Weight(kg)	0.2
Estimated Life	50,000 hrs
Certifications	RoHs & CE& ETL

分享按钮

Product Description

u 5M per reel

u Width of Strip: 10mm

u 1200 LED per Reel

u 3 LED per small Unit

u Unit length: 12 .5 mm

u Weight：87 g

u LED Life time: 50K hours

u Storage temperature:0 ℃~ +60 ℃

u Humidity: 40% ~ 70% R

u Operating temperature:-20 ℃~ +45 ℃

u IP Rate: IP 33

u CIR>90 CRI95-97 Available

u MAX Run length : 8 meter

u Three Year Warranty

u IES and Integrating sphere test report available

u Light Source: 2216 SMD LED

Product Information:

Part No.	Color	Luminous Flux/M	LED qty/ Meter.	Dominant Wavelength λd		Operating Voltage	Nominal Current (meter)		Nominal Power (meter)	View Angle
P2216CW240A12-W10	Cool white	1200lm	240	6000k-7000k	DC12V	1.28A	15.36W	120°
P2216NW240A12-W10	Nature White	1130lm	240	3900K-4100K	DC12V	1.28A	15.36W	120°
P2216WW240A12-W10	Warm White	1080lm	240	3000K-3200K/ 2650K-2750K	DC12V	1.28A	15.36W	120°

1. Tolerance of measurement of luminous intensity is ±10%

2. The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

3. Specifications are subject to change without notice.

4. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

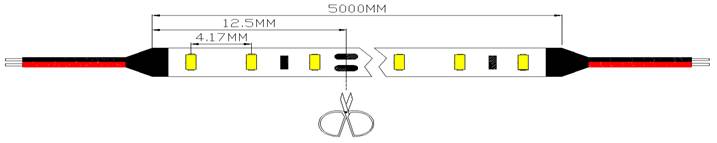

Dimension Drawing

2216 Spotless design, with CRI>90. (Easy company with mini aluminum profile.)
