Current Location： Home » Products » LED strip SMD 2216 (HOT) » SMD2216--266LED /M

You may also like

LED strip SMD 2216 (HOT)

SMD2216--266LED /M

SMD2216--266LED /M

1)  2216 Spotless design, with CRI>90. (Easy company with mini aluminum profile.)


2) solved the problem dark space in the aluminum profiles

Electrical Parameter:


Product Size(mm)

5000*10*0.25

LED Quantity(per meter)

266 PCS

LED Type

 SMD2216 LED

Input Voltage

24V DC

Current(Amps/m)

0.69

Min Cuttable Length(mm)

10

Beam Angle

120°

Max. Power Consumption(W/meter)

16.42W

Operating Temperature

-250 C ~ +450 C

Storage Temperature

-300 C ~ +800 C

Net Weight(kg)

0.3

Estimated Life

50,000 hrs

Certifications

RoHs & CE&ETL




分享按钮
Product Description

Product Features:

u  5M per reel

u Width of Strip:  10mm

u 1330  LED per Reel

u  7 LED per small Unit

u  Unit length: 26.3mm

u  Weight：90  g

u  LED Life time: 50K hours

u  Storage temperature:0 ℃~ +60 ℃

u  Humidity: 40% ~ 70% R

u  Operating temperature:-20 ℃~ +45 ℃

u  IP Rate: IP 33

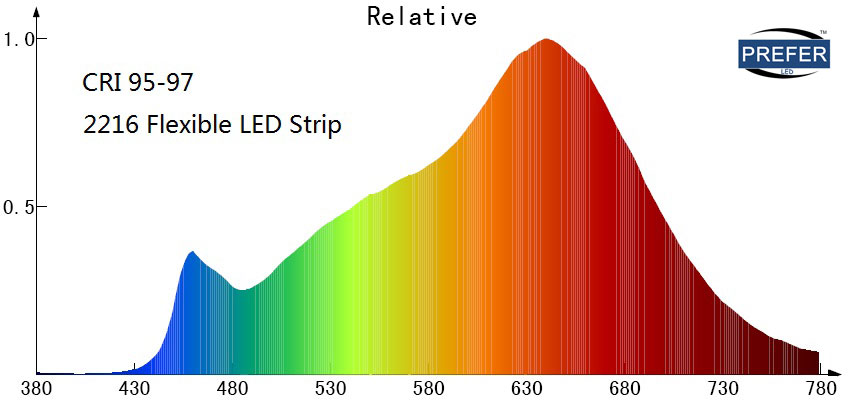

u  CIR>90    CRI95-97 Available

u  MAX Run length : 5 meter

u  Three Year Warranty

u  IES and Integrating sphere test report available

u  Light Source: 2216 SMD LED


Product Information:



Part No.

Color

Luminous Flux/M

LED

qty/ Meter.

Dominant Wavelength λd

Operating Voltage

Nominal Current

(meter)

Nominal Power (meter)

View Angle

P2216CW266A24-W10

Cool white

1440lm

266

6000k-7000k

DC24V

0.69A

16.42W

120°

P2216NW266A24-W10

Nature   White

1410lm

266

3900K-4100K

DC24V

0.69 A

16.42W

120°

P2216WW266A24-W10

Warm

 White

1330lm

266

3000K-3200K/ 2650K-2750K

DC24V

0.69 A

16.42W

120°

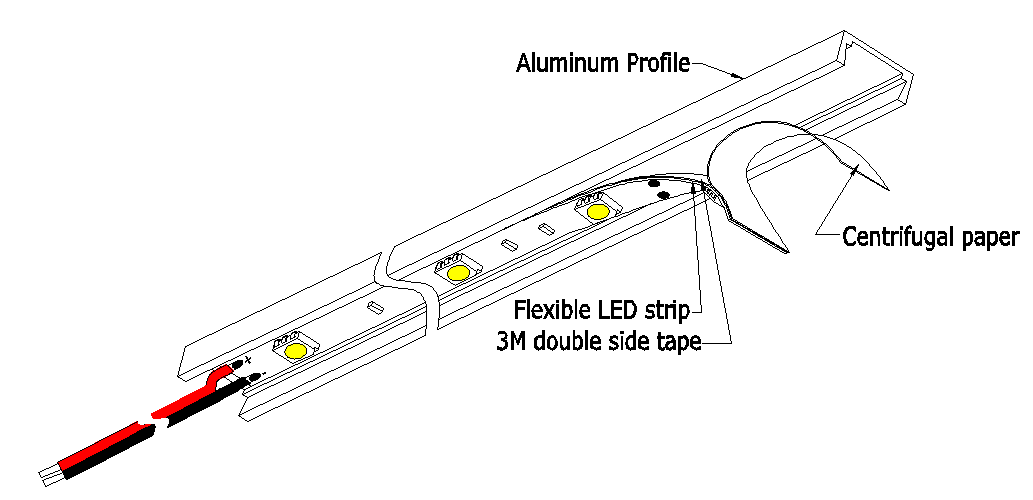

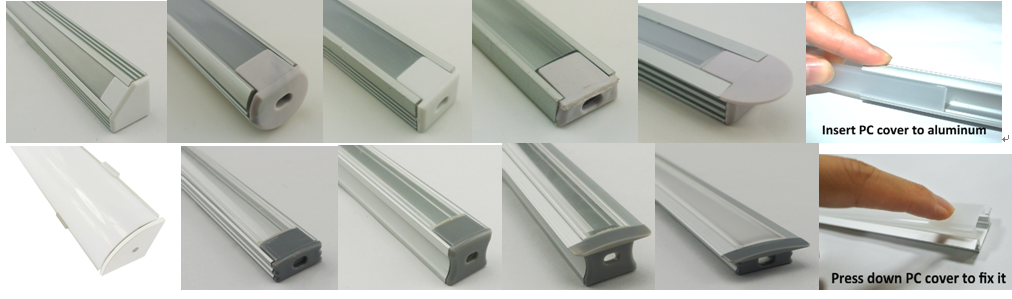

 Work with aluminum profiles, which will help heat dissipation.


PREFER LED BIN standard： Narrow bin with Macadam 3 Step




2216 flexible LED strips have many features such as design of heat dissipation pad, high color rending index CRI 90-95 & CRI 95-97.
