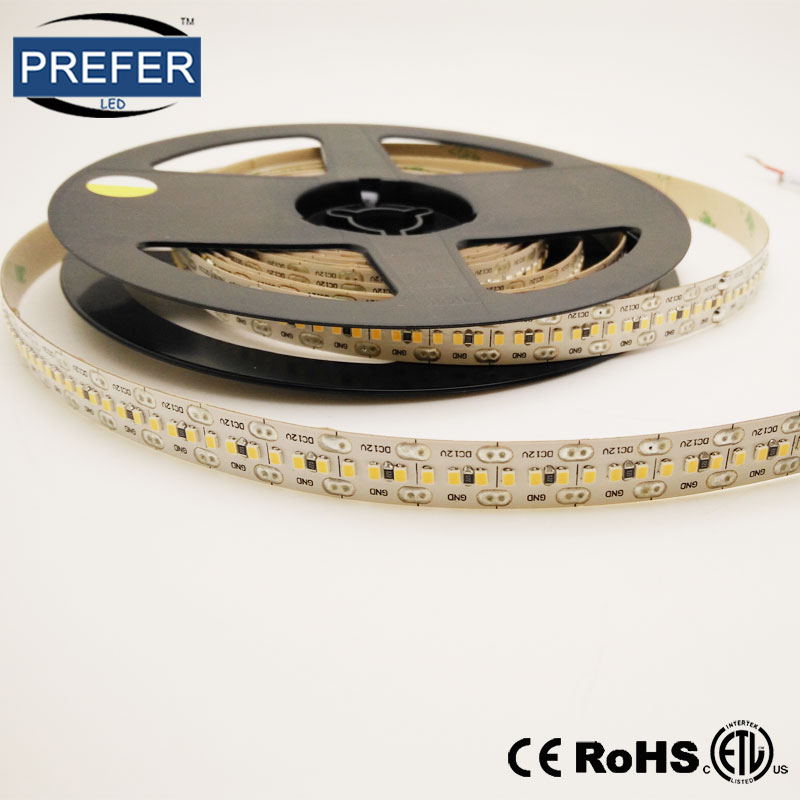

LED strip SMD 2216 (HOT)
SMD2216--300LED /M
1) 2216 Spotless design, with CRI>90. (Easy company with mini aluminum profile.)
2) solved the problem dark space in the aluminum profiles
Electrical Parameter:
|
Product Size(mm) |
3000*10*0.25 |
|
LED Quantity(per meter) |
300 PCS |
|
LED Type |
SMD2216 LED |
|
Input Voltage |
12V DC |
|
Current(Amps/m) |
1.6 |
|
Min Cuttable Length(mm) |
10 |
|
Beam Angle |
120° |
|
Max. Power Consumption(W/meter) |
19.2W |
|
Operating Temperature |
-250 C ~ +450 C |
|
Storage Temperature |
-300 C ~ +800 C |
|
Net Weight(kg) |
0.2 |
|
Estimated Life |
50,000 hrs |
|
Certifications |
RoHs & CE&ETL |
Product Features:
u 3M per reel
u Width of Strip: 10mm
u 900 LED per Reel
u 3 LED per small Unit
u Unit length: 10 mm
u Weight：92 g
u LED Life time: 50K hours
u Storage temperature:0 ℃~ +60 ℃
u Humidity: 40% ~ 70% R
u Operating temperature:-20 ℃~ +45 ℃
u IP Rate: IP 33
u CIR>90 CRI95-97 Available
u MAX Run length : 3 meter
u Three Year Warranty
u IES and Integrating sphere test report available
u Light Source: 2216 SMD LED
Product Information:
|
Part No. |
Color |
Luminous Flux/M |
LED qty/ Meter. |
Dominant Wavelength λd |
Operating Voltage |
Nominal Current (meter) |
Nominal Power (meter) |
View Angle |
||
|
P2216CW300A12-W10 |
Cool white |
1450lm |
300 |
6000k-7000k |
DC12V |
1.6A |
19.2W |
120° |
||
|
P2216NW300A12-W10 |
Nature White |
1350lm |
300 |
3900K-4100K |
DC12V |
1.6A |
19.2W |
120° |
||
|
P2216WW300A12-W10 |
Warm White |
1300lm |
300 |
3000K-3200K/ 2650K-2750K |
DC12V |
1.6A |
19.2W |
120° |
||

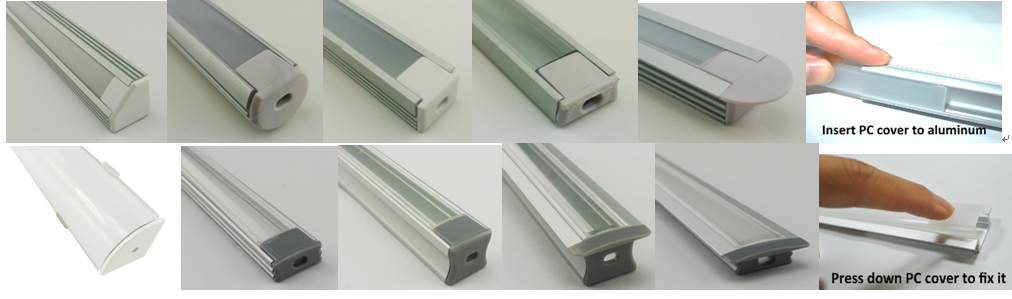

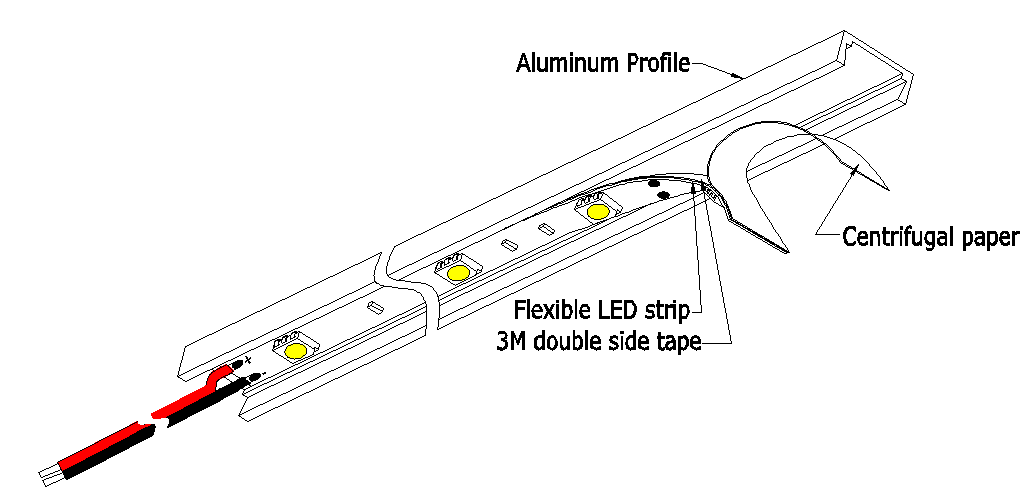

Work with aluminum profiles, which will help heat dissipation.
