LED strip for high efficiency

5050 HIGH CRI SERIES-7.2W-30LED

Item No.: P5050W30H12/24-W10
Width: 10mm
Length: 5m
Brightness: 480 Lm/m
Wattage : 7.2W/m
Voltage: 12V/24V
LED Type: 5050
LED QTY: 30
Color: 2600-2800K/3000-3200K/4000-4200K/6000-6500K
Waterproof:
IP20/ IP65 /IP67 /IP68
Warranty: 3 Years
CE / RoHS: Yes

分享按钮

Product Description

Product Description

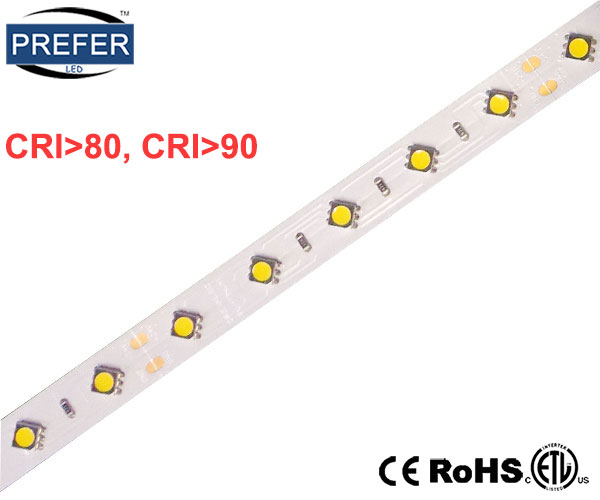

The Strip was made by Flexible Printed Circuit Board and 5050 Top LED. The LED is even, large and high brightness lighting effect. Also it is soft and easy bended for installation. The cutting unit is 50mm and 3 pieces LED per group, so you could cut a different length for your project and request. The strip could have six single colors (included: White, Warm White, Blue, Green, Red & Yellow). The Strip is working on 12V/24V DC and passed CE EMC testing. Suitable for both indoor & outdoor decorative application.

Product Features

．5M per reel
．Width of Strip: 10mm
．5050LED with three Chips per Reel
．5 LED per small Unit
．Unit length: 100mm
．Weight：125g
．LED Life time: Mean time between failure (MTBF): 50K – 100K hours
．Storage temperature: 0 ℃ ~ +60 ℃
．Humidity: 40% ~ 70% R
．Operating temperature: -20 ℃ ~ +45 ℃

．Two Year Warranty

．CRI>95

Product Information:

Part No.	Color	Luminous Flux/M	LED qty/ Meter.	Dominant Wavelength λd	Operating Voltage	Nominal Current (meter)	Nominal Power (meter)	View Angle
P5050C30A12/24-W10	White	500lm	30	6000K-7000K	DC24V	0.3A	7.2W	120°
P5050W30A12/24-W10	Warm White	480lm	30	3000K-3500K	DC24V	0.3A	7.2W	120°
P5050B30A12/24-W10	Blue	100lm	30	465nm-475nm	DC24V	0.3A	7.2W	120°
P5050G30A12/24-W10	Green	330m	30	515nm-525nm	DC24V	0.3A	7.2W	120°
P5050R30A12/24-W10	Red	300lm	30	620nm-630nm	DC24V	0.3A	7.2W	120°
P5050Y30A12/24-W10	Yellow	220lm	30	585nm-595nm	DC24V	0.3A	7.2W	120°

1. Tolerance of measurement of luminous intensity is ±10%
2. The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
3. Specifications are subject to change without notice.
4. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
5. White: 6000-7000K / 7000-9000K; Neutral White: 3800-4400K; Warm White: 2700-3000K / 3000-3500K;
Blue: 465-475nm; Green: 515-525nm; Red: 620-630nm; Yellow: 585-595nm.

Applications
．Avertising Panel
．Demonstration Cabinet

．Walkways and Stairways Lighting
