Current Location: Home » Products » LED Strip Light » P3240


LED Strip Light

P3240

Product Details:
  • Place of Origin: Guangdong China(mainland)
  • Brand Name: PREFER LED
  • Certification: CE/ROHS /ETL
  • Model Number: P3528W240W-24VW10 /15
  • Payment & Shipping Terms:
  • Minimum Order Quantity: 20pcs
  • Delivery Time: 7-10 days
  • Payment Terms: T/T
  • Supply Ability: 500,000m per month



分享按钮
Product Description
Product Description

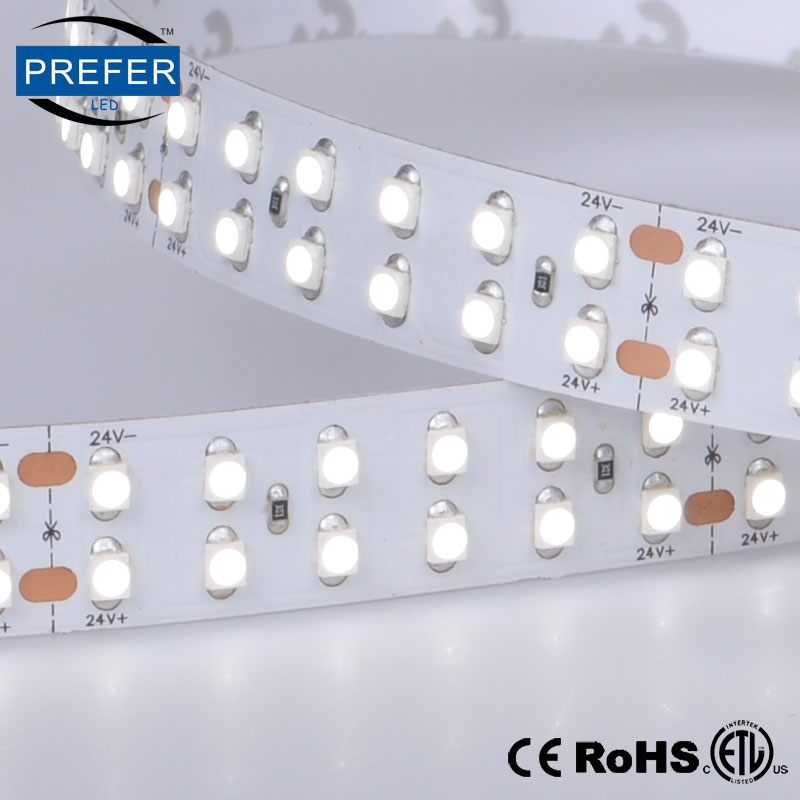

The Strip was made by Flexible Printed Circuit Board and 3528 Top LED. The LED is even, large and high brightness lighting effect. Also it is soft and easy bended for installation. The entire transparent of casing is waterproof seal and passing IP 68. Use of very soft PVC After a molding material as a protective film, transparent, waterproof and dustproof packaging, water, etc.Level to achieve IP68 this product. Has a very soft, flexible and easy to bend, install molding.Convenient, easily broken shock, convenient transportation, water, etc. UV.The cutting unit is 25mm and 3 pieces LED per group, so you could cut a different length for your project and request. The strip could have six single colors (included: White, Warm White, Blue, Green, Red & Yellow). The Strip is working on 12V/24V DC and passed CE EMC testing. Suitable for both indoor & outdoor decorative application.


Product Features

.5M per reel
.Width of Strip: 14mm
.1200pcs 3528LED per Reel
.6 LED per small Unit
.Unit length: 50mm
.Weight:195g
.LED Life time: Mean time between failure (MTBF): 50K – 100K hours
.Storage temperature: 0 ℃ ~ +60 ℃
.Humidity: 40% ~ 70% R
.Operating temperature: -20 ℃ ~ +45 ℃
.Two Year Warranty

Product Information



Part No.

Color

Luminous Flux/M

LED

qty/ Meter.

Dominant Wavelength λd

Operating Voltage

Nominal Current

(meter)

Nominal Power (meter)

View Angle

P3528C240A24-W10/15

White

1680 lm

240

6000K-7000K

DC24V

0.8A

19.2W

120°

P3528W240A24-W10/15

Warm

 White

1440lm

240

3000K-3500K

DC24V

0.8A

19.2W

120°

P3528B240A24-W10/15

Blue

1000lm

240

465nm-475nm

DC24V

0.8A

19.2W

120°

          P3528G240A24-W10/15

Green

720m

240

515nm-525nm

DC24V

0.8A

19.2W

120°

P3528R240A24-W10/15

Red

720lm

240

620nm-630nm

DC24V

0.8A

19.2W

120°

P3528Y240A24-W10/15

Yellow

720lm

240

585nm-595nm

DC24V

0.8A

19.2W

120°


1. Tolerance of measurement of luminous intensity is ±10%
2. The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
3. Specifications are subject to change without notice.
4. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
5. White: 6000-7000K / 7000-9000K; Neutral White: 3800-4400K; Warm White: 2700-3000K / 3000-3500K;
Blue: 465-475nm; Green: 515-525nm; Red: 620-630nm; Yellow: 585-595nm.


Applications
Shopping Mall Interiors
Festival Decorative Lighting
Architectural Decorative Lighting
