Product Description

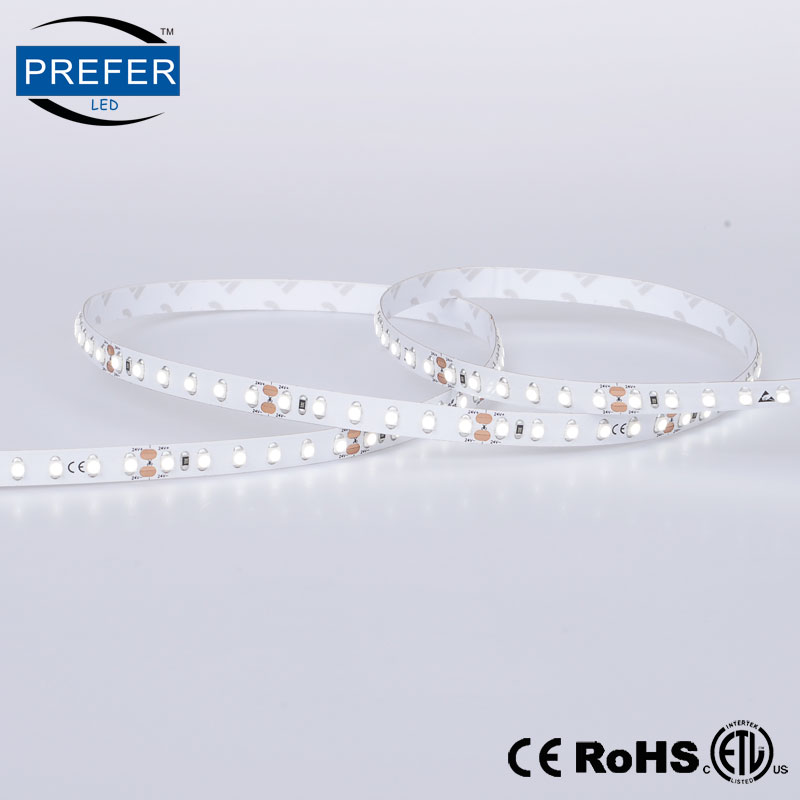

The Strip was made by Flexible Printed Circuit Board and 3528 Top LED. The LED is even, large and high brightness lighting effect. Also it is soft and easy bended for installation. The entire transparent of casing is waterproof seal and passing IP 68. Use of very soft PVC After a molding material as a protective film, transparent, waterproof and dustproof packaging, water, etc.Level to achieve IP68 this product. Has a very soft, flexible and easy to bend, install molding.Convenient, easily broken shock, convenient transportation, water, etc. UV.The cutting unit is 25mm and 3 pieces LED per group, so you could cut a different length for your project and request. The strip could have six single colors (included: White, Warm White, Blue, Green, Red & Yellow). The Strip is working on 12V/24V DC and passed CE EMC testing. Suitable for both indoor & outdoor decorative application.

Product Features

．5M per reel
．Width of Strip: 8mm
．600pcs 3528LED per Reel
．6 LED per small Unit
．Unit length: 50mm
．Weight：145g
．LED Life time: Mean time between failure (MTBF): 50K – 100K hours
．Storage temperature: 0 ℃ ~ +60 ℃
．Humidity: 40% ~ 70% R
．Operating temperature: -20 ℃ ~ +45 ℃
．Two Year Warranty

Product Information

1. Tolerance of measurement of luminous intensity is ±10%
2. The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
3. Specifications are subject to change without notice.
4. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
5. White: 6000-7000K / 7000-9000K; Neutral White: 3800-4400K; Warm White: 2700-3000K / 3000-3500K;
Blue: 465-475nm; Green: 515-525nm; Red: 620-630nm; Yellow: 585-595nm.


Applications

．Avertising Panel
．Demonstration Cabinet
．Walkways and Stairways Lighting
