Product Description

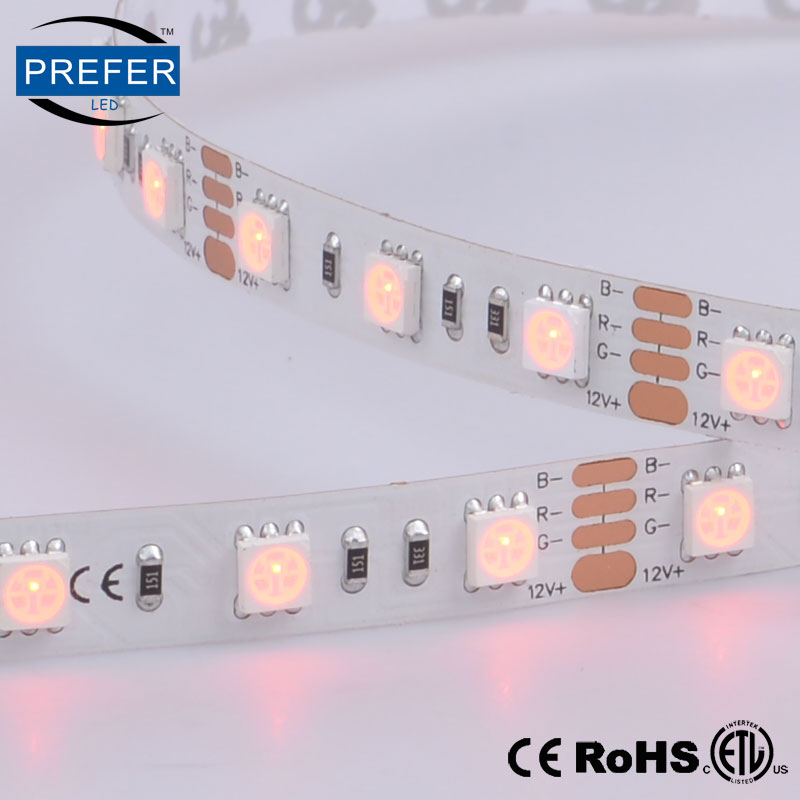

The Strip was made by Flexible Printed Circuit Board and 5050 Top RGB LED. The LED is even, large and high brightness lighting effect. Also it is soft and easy bended for installation. The Strip have a soft PVC casing to protective the FPCB and LED, the entire transparent of casing is waterproof seal and passing IP 65. The cutting unit is 50mm and 3 pieces LED per group, so you could cut a different length for your project and request. The strip could have different color (red, yellow, Pink…...) and programs include single color holding, color charge at the same time and gradual change. The Strip is working on 12V/24V DC and passed CE EMC testing.

 Product Features



．5M per reel

．Width of Strip: 10mm

．300pcs 5050LED (3clips) per Reel

．3 LED per small Unit

．Unit length: 50mm

．Weight：110g

．LED Life time: Mean time between failure (MTBF): 50K – 100K hours

．Storage temperature: 0 ℃ ~ +60 ℃

．Humidity: 40% ~ 70% R

．Operating temperature: -20 ℃ ~ +45 ℃

．Two Year Warranty





Product Information:



Flexsible RGB led strips



1.Tolerance of measurement of luminous intensity is ±10%

2.The dominant wavelength λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

3.Specifications are subject to change without notice.

4.θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.



Applications:



．Shopping Mall Exteriors

．Festival Decorative Lighting

．Architectural Decorative Lighting
